Star & Delta Control Panel
Star Delta Control Panels are used for switching three-phase AC motors with very high inrush current. OswalStar/Delta
Control Panel connects the motor to the power supply through a voltage reduction method and increases the applied voltage in steps by changing star to delta position automatically. These Panels are specially designed for Agriculture
and lndustrial use.
Oswal Genius Star & Delta Control Panel
GENIUS Star-Delta (GSD) is a very advanced product offering from OSWAL PUMPS LTD.
GSD now has a complete range offering from 5 HP upto 60 HP.
GSD is the all in one smart digital control Panel which combines the regular function of a control Panel.
This control Panel is a manaually single push switch to start. Shot Circuit Protection, Dry Run Protection
Water Level Control Panel Which Protect the Complete unit.
Sailent Features
- Three Phase voltage display and ampere meter
- Smart Micro Processor Technology
- Protect Motor from running in two phase
- Protect against unbalance voltage
- Over Load (Current) Protection
- Different indications for reverse phase & Voltage fault
- In-build Water Level Controller (WLC)
- Single push switch to start the motor in star & it will be automatically turn in 10 seconds to Delta
| Sr.No. | Model No. | HP | Kw | Current(Amp) | OPERATING VOLTAGE(3 PHASE) |
|---|
| 1 | OSG-3PH-S/D-15 | 10-15 | 7.5-11.2 | 29 | 415 V AC +/- 10%, 50 Hz |
| 2 | OSG-3PH-S/D-20 | 15-20 | 11.2-15 | 38 | 415 V AC +/- 10%, 50 Hz |
| 3 | OSG-3PH-S/D-25 | 20-25 | 15-18.6 | 42 | 415 V AC +/- 10%, 50 Hz |
| 4 | OSG-3PH-S/D-30 | 25-30 | 18.6-22.4 | 48 | 415 V AC +/- 10%, 50 Hz |
| 5 | OSG-3PH-S/D-35 | 30-35 | 22.4-26 | 54 | 415 V AC +/- 10%,50 Hz |
| 6 | OSG-3PH-S/D-40 | 40 | 30 | 62 | 415 V AC +/- 10%, 50 Hz |
| 7 | OSG-3PH-S/D-50 | 50 | 37.3 | 75 | 415 V AC +/- 10%, 50 Hz |
| 8 | OSG-3PH-S/D-60 | 60 | 44.75 | 90 | 415 V AC +/- 10%, 50 Hz |
Oswal Genius Smart Star & Delta Control Panel
GENIUS Star-Delta (GSD) is a very advanced product offering from OSWAL PUMPS LTD.
GSD now has a complete range offering from 15 HP upto 60 HP.
GSD is the all in one smart digital control Panel which combines the regular function of a control Panel
including with remote switching, short circuit protection,dry run protection and an extra additional
feature known as anti-theft which protect the complete unit.
Sailent Features
- Three Phase voltage display and ampere meter
- Smart Micro Processor Technology
- Protect Motor from running in two phase
- Protect against unbalance voltage
- Over Load (Current) Protection
- Different indications for reverse phase & Voltage fault
- In-build Water Level Controller (WLC)
- Single push switch to start the motor in star & it will be automatically turn in 10 seconds to Delta
Smart Features

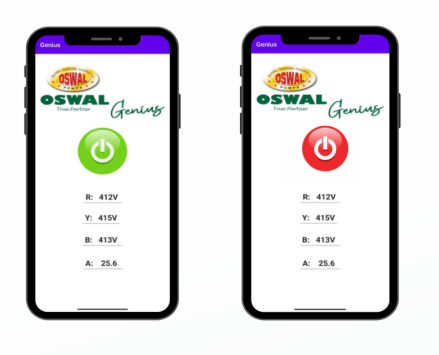

- Mobile application control
- ON-OFF by text messages, Calling and voice
- Get information related to control panel by just sending a text message from your mobile
- Anti-theft Protection*
- Get Precise location co-ordinates of control panel on your mobile**
| Sr.No. | Model No. | HP | Kw | Current(Amp) | OPERATING VOLTAGE(3 PHASE) |
|---|
| 1 | OSG-SMART-3PH-S/D-15 | 10-15 | 7.5-11.2 | 29 | 415 V AC +/- 10%, 50 Hz |
| 2 | OSG-SMART-3PH-S/D-20 | 15-20 | 11.2-15 | 38 | 415 V AC +/- 10%, 50 Hz |
| 3 | OSG-SMART-3PH-S/D-25 | 20-25 | 15-18.6 | 42 | 415 V AC +/- 10%, 50 Hz |
| 4 | OSG-SMART-3PH-S/D-30 | 25-30 | 18.6-22.4 | 48 | 415 V AC +/- 10%, 50 Hz |
| 5 | OSG-SMART-3PH-S/D-35 | 30-35 | 22.4-26 | 54 | 415 V AC +/- 10%,50 Hz |
| 6 | OSG-SMART-3PH-S/D-40 | 40 | 30 | 62 | 415 V AC +/- 10%, 50 Hz |
| 7 | OSG-SMART-3PH-S/D-50 | 50 | 37.3 | 75 | 415 V AC +/- 10%, 50 Hz |
| 8 | OSG-SMART-3PH-S/D-60 | 60 | 44.75 | 90 | 415 V AC +/- 10%, 50 Hz |
Genius Smart Control Panel Key features:
- Anti-Theft Protection is a unique key feature which helps farmers to do not worry about
their control Panel getting stolen. If anyone tries to steal the panel,the product will

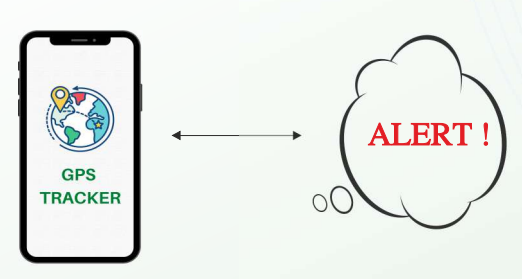

immediately sendan SMS Alert and an Alert Call of theft along with the new GPS location.
- Three phase protection which sense each phase and when all voltages are under range then only allow to operate the control Panel.
- Another key feature is to set customized time variants according to the need of farmer.

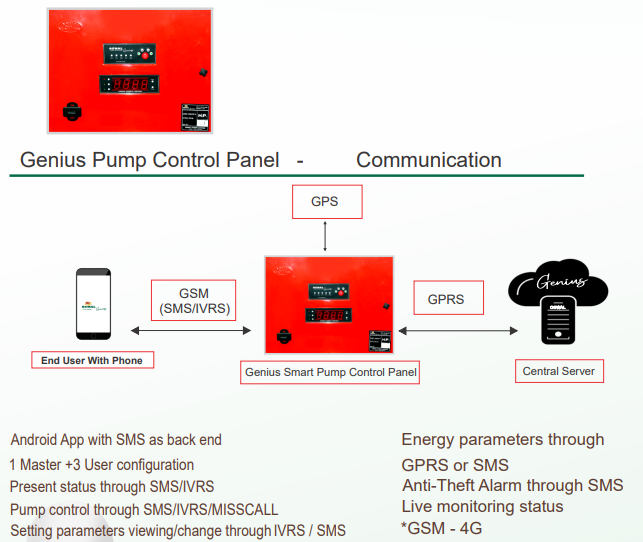

- The Remote operation which allows the setting of all the operation parameters which
can be done in a hassle-free way using a mobile phone with sitting at a distance
remotely.The product can be can be set through mobile phone as it can be easily
operated with help of Call,SMS,and Android App.

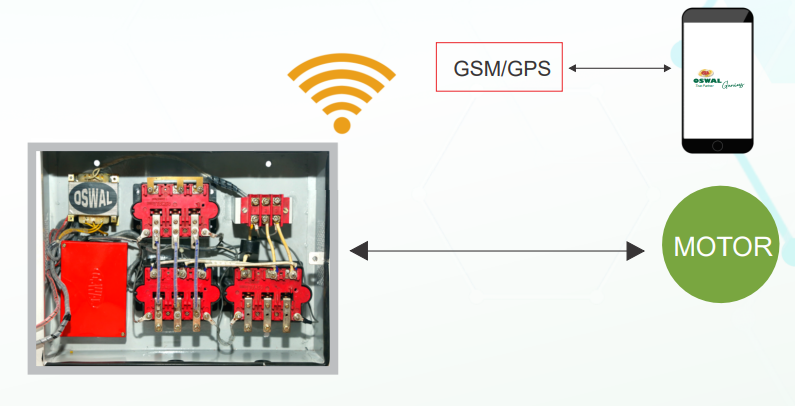

- GSM based complete remote operations like ON/OFF, Parameter setting, Monitoring,Trouble shooting through SMS or Mobile App.

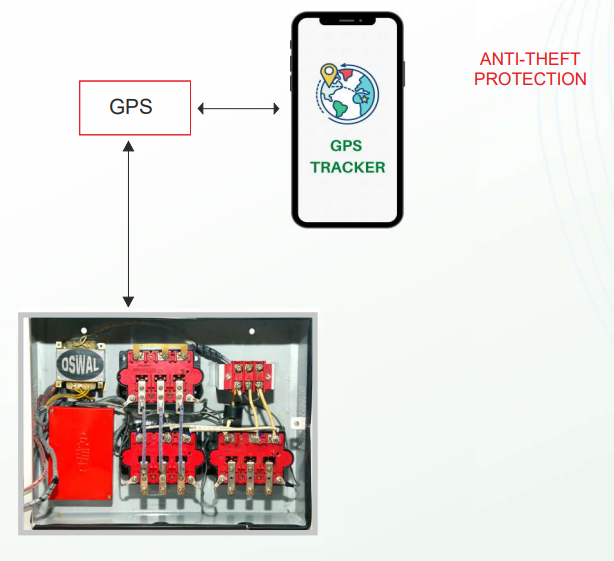

- In built Anti-Theft Protection which gives emergency alert call and SMS to your mobile when someone try to steal controller. Also gives new GPS location,
if any body relocates your control Panel.
- No need to connect any additional devices for your pump operation, only supply and motor wire to be connected.

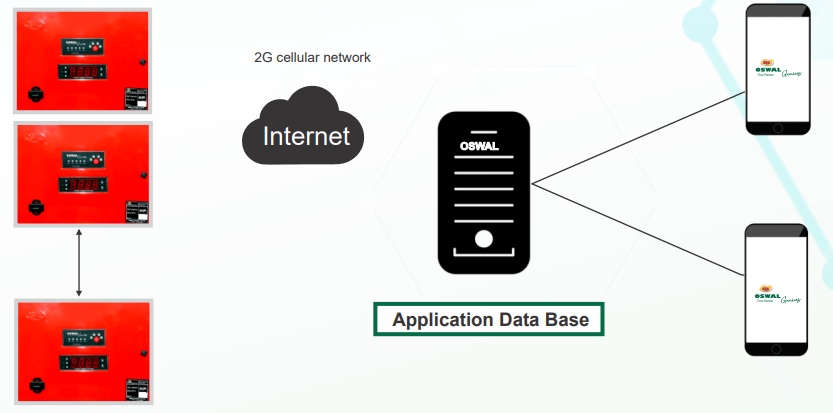

- Smart Pump Control Panel Server Connectivity.
- Supported protocol HTTP/HTTPS/FTP/MQTT/RAWTCP/IP
- Configurable time to update system information on server
- Event based parameter update on server e.g. PUMP ON/Off, Fault
- Metering, Geographical location, Time stamp, Control Panel configuration and user settings
- Data storage on server side
- Data collection of control panel snapshot with latitude & longitude and Time stamp
- Web based user interface
- Notification function (SMS/e-mail)
- Usage and Control Panel Summary
- Client can extract data by connecting to central system
- Most popular protocol in internet of things(IOT)Works on publish subscribe model Need Separate application for storage data at Server side.
- Three Phase Voltage &Current based complete protection with individual protection Enable / Disable feature.
