Industrial Range

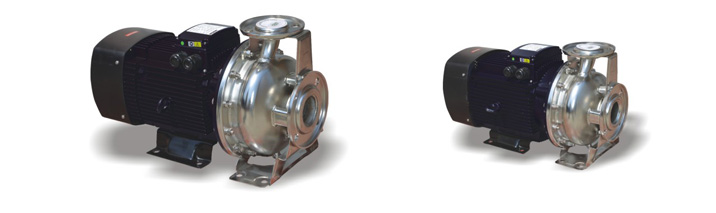

Oswal Centrifugal Monoblock pump sets are the products of the expertise of highly qualified technical team with a stage wise rigid inspection method under TQM concept. The volute chamber of Oswal Centrifugal Monoblock pumps and impellers are well designed to provide the best possible hydraulic efficiency and suction lift characteristic. CNC & SPM’s machinery and technology are employed in the manufacture of these pumps using best quality raw materials, well-balanced impellers, seals and ball bearings to ensure long life. Oswal Centrifugal Monoblock Pumps conform to IS 9079. These pumps are powered by a totally enclosed fan cooled AC induction motor, suitable for long hours duty. Motor stator is made of low watt loss steel laminations assembled under pressure and rigidly locked in the frame. Well-balanced rotor ensures vibration and noise-free operations. The varnish impregnated windings made of enamelled copper wire offer excellent resistance. Shaft is made of quality steel, precision ground of ample size for transmitting the rated Horsepower. All single-phase version up to 3.0 HP are incorporated with Thermal Over Load protector. These pumps require an adequate motor protection control panel. Application of Oswal Centrifugal Monoblock pump set are for Hospitals, Water circulation systems, Water supply systems of Government, Irrigation, Farms & Drip & sprinkler irrigation, Gardening, Nurseries, Domestic water supply, Multi-storey Building, Industries & Hotels. Salient Features of Oswal Centrifugal Monoblock pump set: High operating efficiency resulting in lower power consumption, Good suction lift characteristics, Dynamically balanced rotating parts including rotor & impeller, Balanced and rigid construction, High working pressure & Designed for wide voltage fluctuations. CENTRIFUGAL MONOBLOCK PUMPS - 2880 RPM (Single & Three Phase)
Key features
- well-balanced impellers
- Water circulation systems
- Water supply systems of Government
- Farms & Drip & sprinkler irrigation
- Domestic water supply
- Multi-storey Building
- Good suction lift characteristics
- Dynamically balanced rotating parts including rotor & impeller
Specifications
- Power Range
- 0.5–5 HP in 1 Phase 0.5–20 HP in 3 Phase
- Speed
- 2880 rpm
- Discharge range
- 65–1350 LPM in 1 Phase 65–2290 LPM in 3 Phase
- Head range
- 10–30 m in 1 Phase 10–74 m in 3 Phase
- Suction lift up to
- 8 m
- Suction x Delivery size
- 25 × 25 to 100 × 100 mm
- Version
- 220–240 V, 50 Hz, AC, 1-phase, Permanent Split capacitor (PSC) Incorporated with Thermal Overload Protector, 350–440 V - 3 Phase
- Degree of Protection
- IP 54
- Insulation
- Class B
- Duty
- S1 (Continuous)
- Pump Casing
- Cast Iron
- Motor Body
- Cast Iron
- Impeller
- Cast Iron
- Shaft
- EN 8
Applications
