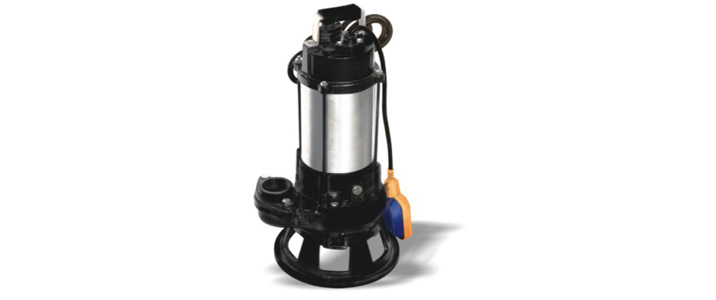

Sewage Pumps

Sewage Pumps

Drainage of sewage from the building basements, hotel industry, waste water from factories. Drainage of sewage from industrial process factories. Emptying of septic tanks, cesspits and sewage pump stations.Pumping surface and drainage water from garages and sprinkler systems.

A precision manufactured motor is achieved utilizing a laminated sheet steel production process combined with the highest standard of quality control. The drive shaft and rotor assembly is heat - treated and the stator and wiring impregnated with varnish and then heat dried in an industrial oven. This ensures a 100% quality manufactured motor with stable characteristics and a high efficiency.
Standard accessories include: VCT cable with an epoxy resin sealed water - resistant cable base, AC thermal motor protector, dual mechanical seal and lip seal design.

Special Features on Request
Other voltages, Available in 60Hz.

Thermal overload protector
Equipped with Automatic reset motor protector prevents motor from burning due to high temperature / phase failure / voltage drop and lock impeller.

Cable Base
Epoxy resin seal cable base to prevent water intrusion into motor through the cable wire.

P Type Impeller
Semi-open impeller cutting foreign particles, and preventing clog by solid media.

Specification :
Power Range 1.0, 2.0 & 3.O HP in
1 Phase & 3 Phase
Speed 2880 rpm
Version 220-240V, 50 Hz, A,C.-1 Phase,
350-440V - 3 Phase
Discharge Range 100 - 400 lpm.
Head Range 3-12 mtr
Outlet  Size 50 & 75 mm
Duty S1 (Continuous)
Protection IP 68
Cable VCT Epoxy resin seal cable.
Thermal Protector Automatic reset motor protector
Insulation Class B
Material of Construction
Impeller Type P type Semi Open
Casing Cover Cost Iron
Bearing Ball type bearing
Impeller Cost Iron
Casing Cost Iron
Upper Cover Cost Iron
Motor side Mechanical Seal Carbon v/s Ceramic
Pump side Mechanical Seal SiC V/s SiC
Motor Body Stainless Steel
Shaft SS - 410
Application in :
• Drainage of sawage from the building basements & hotel industry
• Drainage of sewage from industrial process factories.
• To empty the septic tanks.
• To clear water logging.
• To flush out waste water.
