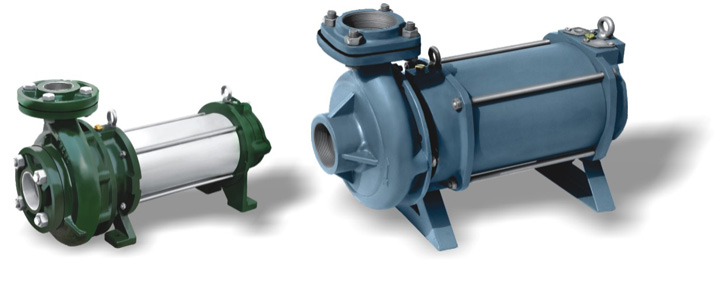

Horizontal Openwell Submersible Pumpset
OSWAL Horizontal Submersible Monoset are well known for its quality, reliability, & excellence for all type of service purpose. Horizontal Monoset are manufactured under supervision of highly qualified technical team with a stage wise rigid inspection method under TQM concepts.
Salient Feature:
High efficiency low power consumption.
Complete absence of suction trouble.
Maintenance free operation due to water Lubricated bearings
Vibration free & Noiseless operation.
World class pumps design gives higher discharge.
| Specification : | |
| Power Range | 0.5 — 5.0 HP in 1 Phase 0.5 - 20 HP - 3 Phase |
| Speed | 2880 rpm |
| Version | 200 - 240 V, 350-440V ,A.C., 50 Hz |
| Discharge Range | 115 - 810 lpm in 1 phase 115- 2190 Ipm in 3 Phase |
| Head Range | 6 — 48 mtr in 1 Phase 6 — 82 mtr in 3 Phase |
| Suction x Delivery Size | 25x25 to 80x80 mm in 1 Phase 25x25 to 100x100 mm 9 phase |
| Duty | S1 (Continuous) |
| Material of Construction | |
| Rear Cover / Bracket | Cast Iron |
| Stator Shell | Cast Iron / S.S / M.S |
| Shaft | SS 410 |
| Impeller | Nylon / Noryl |
| Pumps Casting | Cast Iron |
| Seal | NBR |
| Thrust Bearing Sat | Leaded Bronza and Composites / SS V/s Carbon / SS V/s Fiber |
| Diaphragm | NBR |
| Journal Bearings | LTB 4 |
|
Application in : • Lift from Rivers and canals for irrigation. • Domestic water supply to multistary • Swimming pool & fountains. • Water supply in commercial establishments • For ETP, STP & WTP purpose |
|
