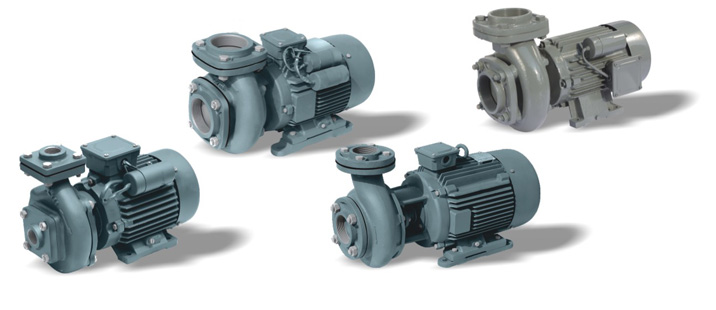

Centrifugal Monoblock Pump sets 2880 RPM

Centrifugal Monoblock Pump sets 2880 RPM

OSWAL Centrifugal Monoblock pumpset are the products of the expertise of highly qualified technical team with a stage wise rigid inspection method under TQM concept. The volute chamber of OSWAL Centrifugal Monoblock pumps and impellers are well designed to provide the best possible hydraulic efficiency and suction lift characteristic. CNC & SPM’s machinary and technology are employed in the manufacture of these pumps using best quality raw materials, well balanced impellers, seals and ball bearings to ensure long life.

OSWAL Centrifugal Monoblock Pumps confirm to IS : 9079. These pumps are powered by a totally enclosed fan cooled AC induction motor, suitable for long hours duty. Motor stator is made of low watt loss steel laminations assembled under pressure and rigidly locked in the frame. Well balanced rotor ensures vibration and noise free operations. The varnish impregnated windings made of enameled copper wire offer excellent resistance. Shaft is made of quality steel, precision ground of ample size for transmitting the rated Horsepower. All single-phase version up to 3.0 HP are incorporated with Thermal Over Load protector. These pumps require an adequate motor protection control panel. Application of OSWAL Centrifugal Monoblock pumpset are for Hospitals, Water circulation systems, Water supply systems of Government, Irrigation, Farms & Drip & sprinkler irrigation, Gardening, Nurseries, Domestic water supply, Multi-storey Building, Industries & Hotels.
Salient Features of OSWAL Centrifugal Monoblock Pumpset: High operating efficiency resulting in lower power consumption, Good suction lift characteristics, Dynamically balanced rotating parts including rotor & impeller, Balanced and rigid construction, High working pressure & Designed for wide voltage fluctuations.
CENTRIFUGAL MONOBLOCK PUMPS - 2880 RPM (Single & Three Phase)

Specification :
Power Range 0.5 - 5 HP in 1 Phase
0.5 - 20 HP in 3 Phase
Speed 2880 rpm
Discharge range 65 - 1350 Ipm in 1 Phase
65 - 2290 Ipm in 3 Phase
Head range 10 - 30 mtr in 1 Phase
10 - 74 mtr in 3 Phase
Suction lift up to 8 mtr.
Suction x Delivery size 25x25 to 100x100 mm
Version 220-240V, 50 Hz, A.C.-1 Phase, Permanent Split capacitor (PSC) Incorporated with Thermal Overload Protector, 350-440V - 3 Phase
Degree of Protection IP 54
Insulation Class B
Duty S1 (Continuous)
Material of Construction
Pump Casing Cast Iron
Motor Body Cast Iron
Impeller Cast Iron
Shaft EN 8
Sealing Mechanical Seal (Carbon & Ceramic) or Asbestos Gland Rope Packing
Application in :

• Sprinklers, drip Irrigation & flooding.
• In Farms & Gardens
• Industrial, fountains & pools
• High-rise buildings for water water circulation
• Fire fighting set up.
