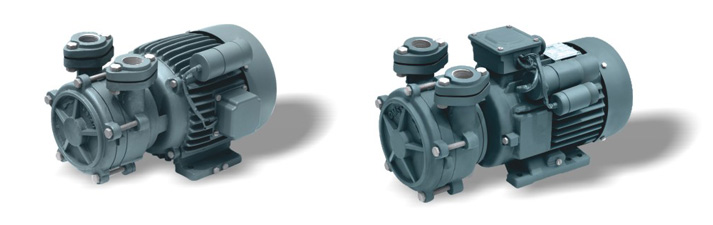

Booster Pumps 1440 RPM
OSWAL Booster Pumps are powered by a totally enclosed fan cooled, AC induction motor, complete absence of suction trouble, suitable for long hours duty. Motor stator is made of low watt loss steel laminations assembled under pressure with rigidly in the frame. Well-balanced rotor ensures vibration and noise free operations. The varnish impregnated windings made of enameled copper wire offer excellent resistance power. Shaft made out of best quality steel, precision ground of ample size, which helps to transmitting the rated Horsepower. All single-phase versions up to 1.0 HP are incorporated with Thermal Over load protector. Application of Regenerative self priming monoblock pumpset is in Hospitals, Water circulation systems, Water supply systems of Gardening, Nurseries, Domestic water supply, Multi-storey Building & Industries.
OSWAL Regenerative self priming monoblock pumpset are of good self priming capacity, dynamically balanced rotating parts, optimal design, High operating efficiency, high working pressure & designed for wide voltage fluctuations.
| Specification : | |
| Power Range | 0.5 HP. & 1.1HP |
| Version | 220-240V, 50 Hz, A.C-1 Phase, Capacitor Start & Capacitor Run (CSCR) |
| Speed | 1440 rpm |
| Duty | S1 (Continuous) |
| Degree of Protection | IP 54 |
| Insulation | Class B |
| Discharge | 30 - 55 Ipm. |
| Head Range | 12 - 32 mtrs |
| Suction lift up to | 8 mtr. |
| Suction x delivery size | 25x25 mm |
| Material of Construction | |
| Pump Casing | Cast Iron |
| Motor Body | Cast Iron |
| Impeller | Bronze |
| Shaft | E.N. 8 |
| Sealing | Mechanical Seal (Carbon V/s Ceramic) |
|
Application in : • Domestic Multi storay • Water supply in Resorts. small landscapes. • Washing Purpose • Civil applications in hospitals, • Water supply in Institutes. |
|
